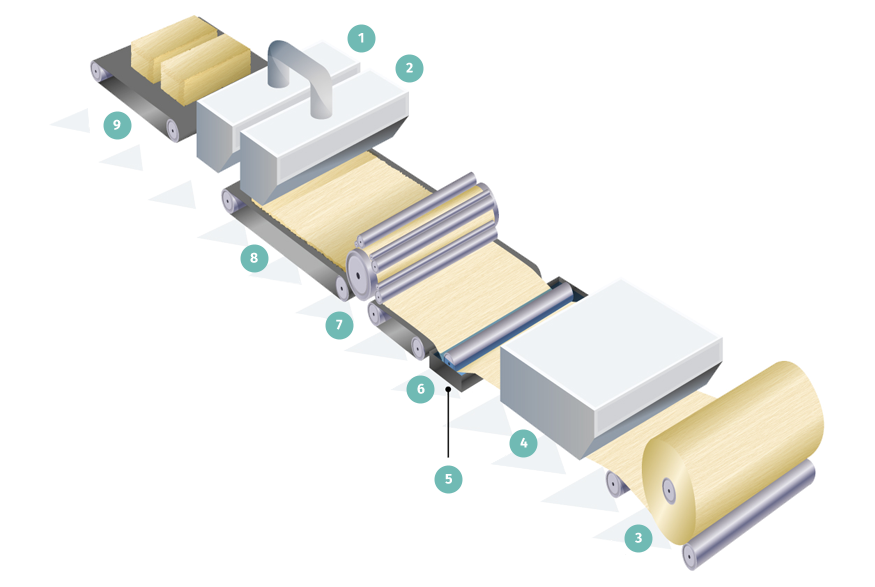

1. Bale opener
2. Chute feed
3. Wind up
4. Drying
5. Pan with liquid binder
6. Binder impregnation
7. Card
8. Staple fibre from bale opener or blender
9. Bales of staple fibre

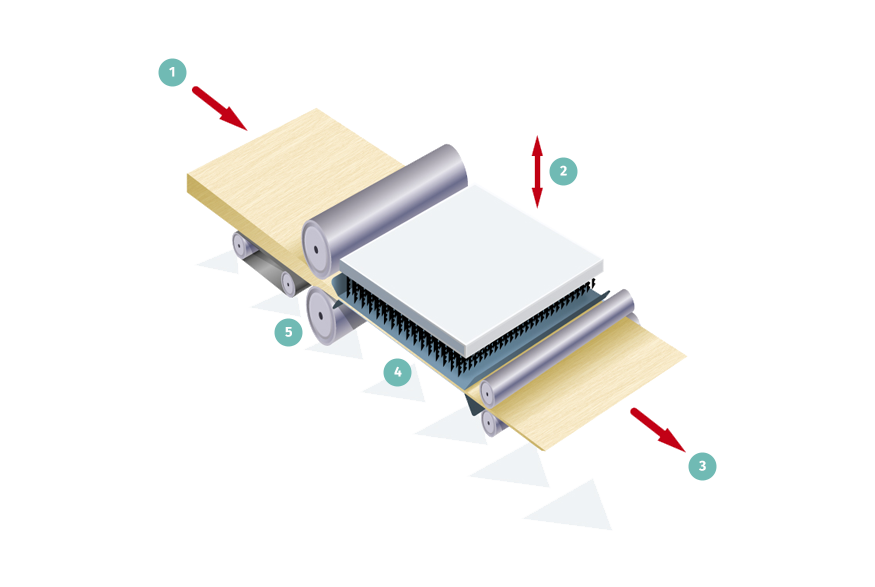

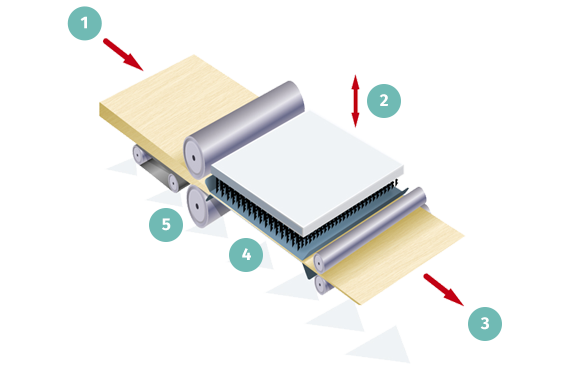

Carding is a mechanical process which starts from bales of fibres. These fibres are ‘opened’ and blended after which they are conveyed to the card by air transport. They are then combed into a web by a carding machine, which is a rotating drum or series of drums covered by card wire (thin strips with teeth). The precise configuration of cards will depend on the type of fibre and the basis weight to be produced. The web can be parallel-laid, where most of the fibres are laid in the machine direction, or they can be randomised. Typical parallel-laid carded webs result in good tensile strength, low elongation and low tear strength in the machine direction and the reverse in the cross direction. Machine parameters and fibre mix can be varied to produce a wide range of fabrics with different properties.

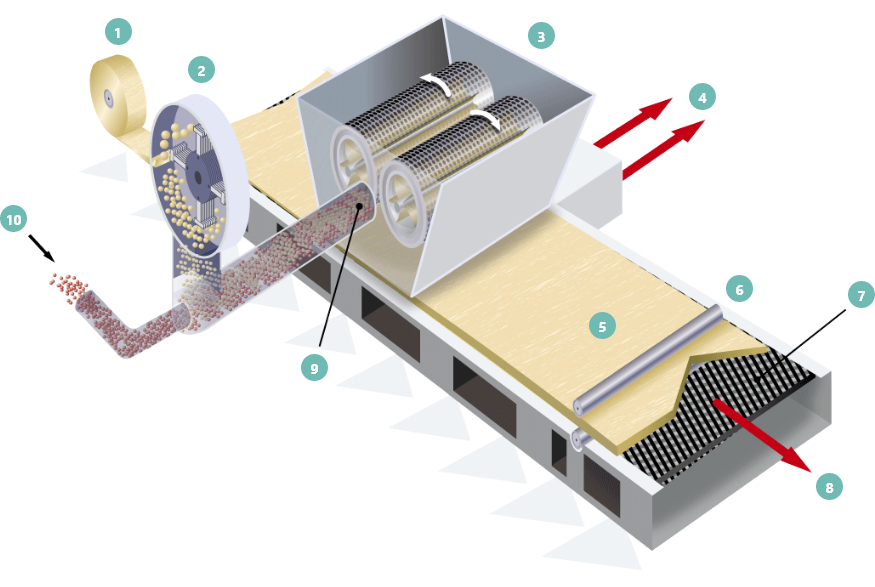

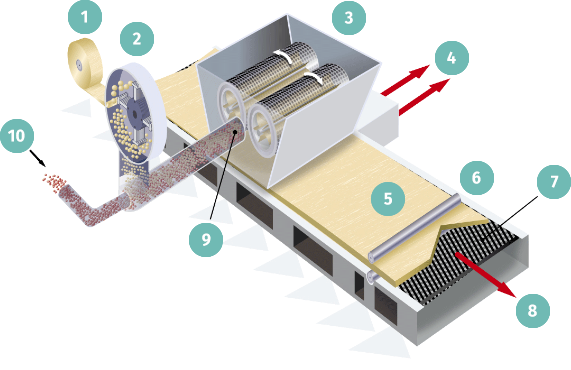

1. Short fibre feed
2. Hammer mill (defibrator)
3. Forming head
4. Air out
5. Web
6. Compactor
7. Moving wire mesh
8. To further bonding
9. Fibres + air in
10. Thermofusible fibres

*Copyright EDANA

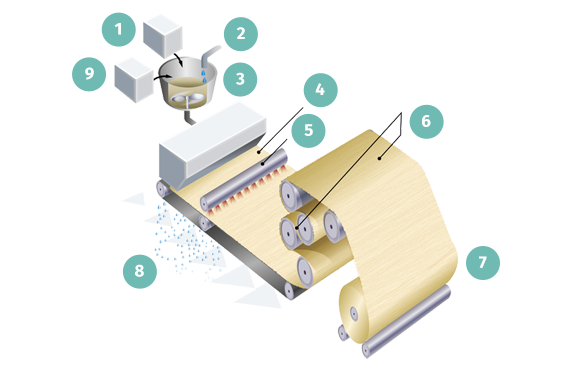

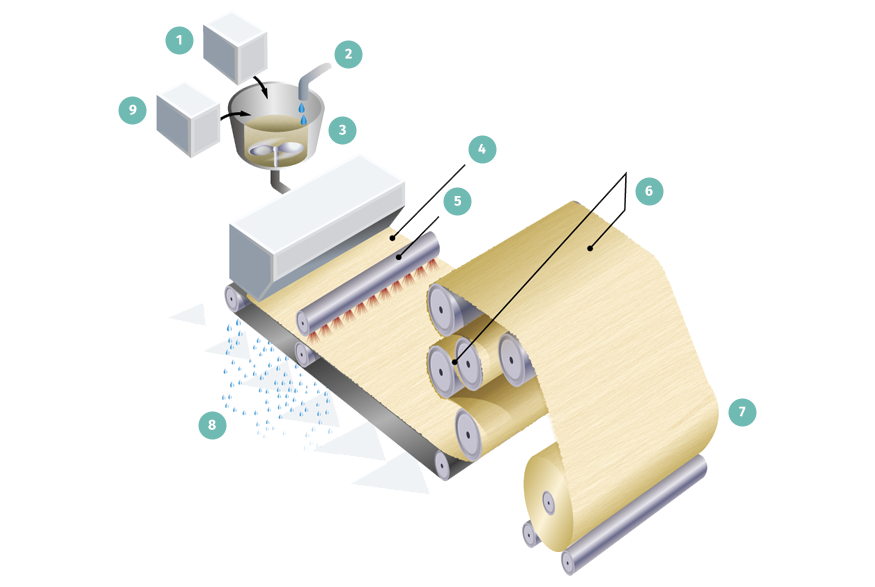

1. Long fibre
2. Water
3. Fibre and water (slurry)
4. Webforming
5. Binder impregnation
6. Drying
7. Windup
8. Excess water removal
9. Wood pulp

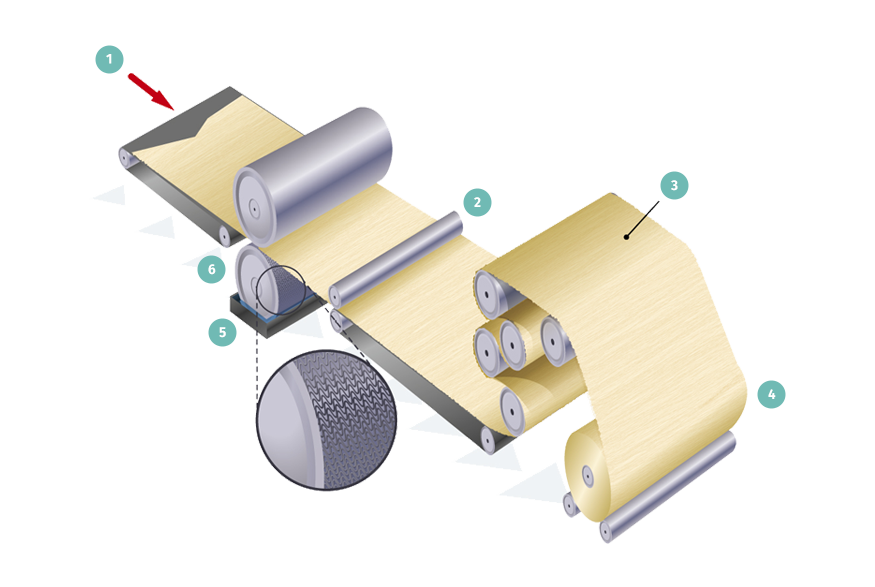

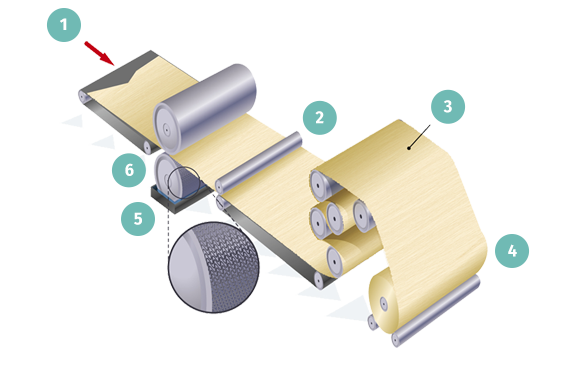

The principle of wetlaying is similar to paper manufacturing. The difference lies in the amount of synthetic fibres present in a wetlaid nonwoven. A dilute slurry of water and fibres is deposited on a moving wire screen, where the water is drained and the fibres form a web. The web is further dewatered by pressing between rollers and dried. Impregnation with binders is often included in a later stage of the process.

The strength of the random oriented web is rather similar in all directions in the plane of the fabric. A wide range of natural, mineral, synthetic and man-made fibres of varying lengths can be used.

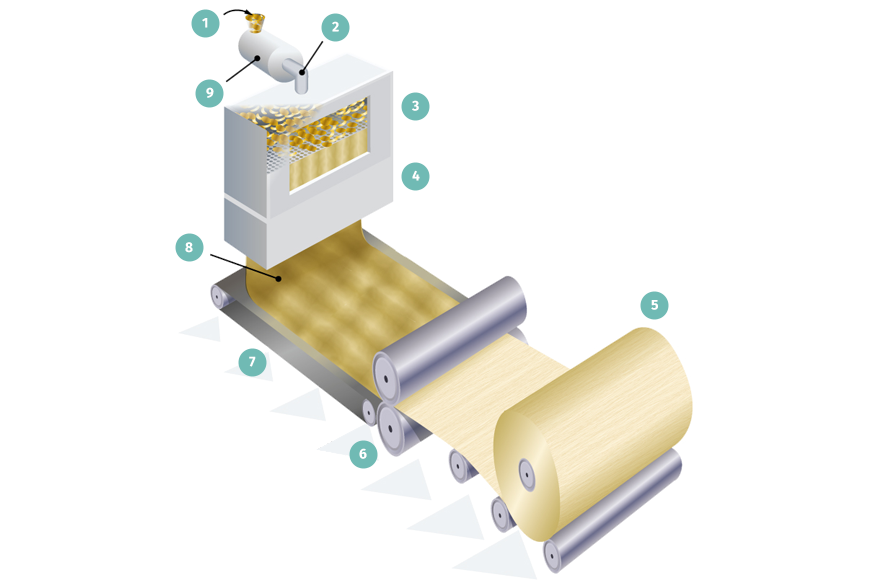

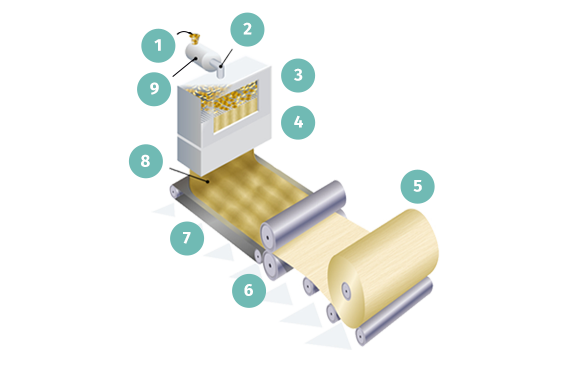

1. Polymer chips feed
2. Liquid polymer
3. Extrusion die
4. Filament attenuator (cooling and stretching)
5. Wind up

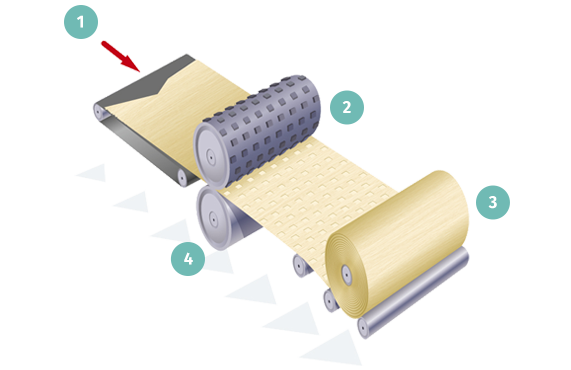

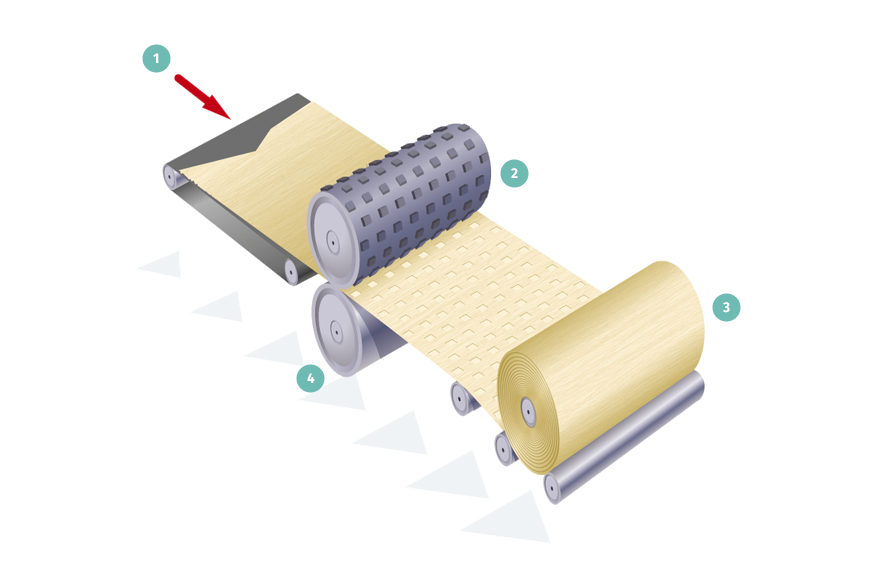

6. Calender bonding
7. Laydown
8. Fiber dispersion
9. Extruder

Spunmelt is a generic term describing the manufacturing of nonwoven webs directly from thermoplastic polymers. It encompasses 2 processes, spunlaid and meltblown, often run in combination.

Polymer granules are extruded into filaments through so called spinnerets. The continuous filaments are stretched and quenched before being deposited on conveyor belt to form a uniform web. The spunlaid process results into nonwovens with an increased strength compared to carding, due to the attenuation of the filaments. The downside is that the choice of raw materials is more restricted. Co-extrusion of two components leads to bico fibres, either adding more properties to the web or allowing air-through bonding. Please note that the word spunbonded is reserved for thermo bonded spunlaid.

Meltblown -roughly speaking- results in filaments with a minimum diameter of 1 micron. For more than a decade developments are going on to produce nonwovens with even finer fibers. These can be of use increasing the efficiency of filtration media or improving the barrier properties.

Technologies in the market are sub-micron meltblown, centrifugal spinning, solution spinning and electrospinning. Although the productivity of these methods is low compared to spunmelt, they are increasingly important for the unique properties they can add to a nonwoven.
